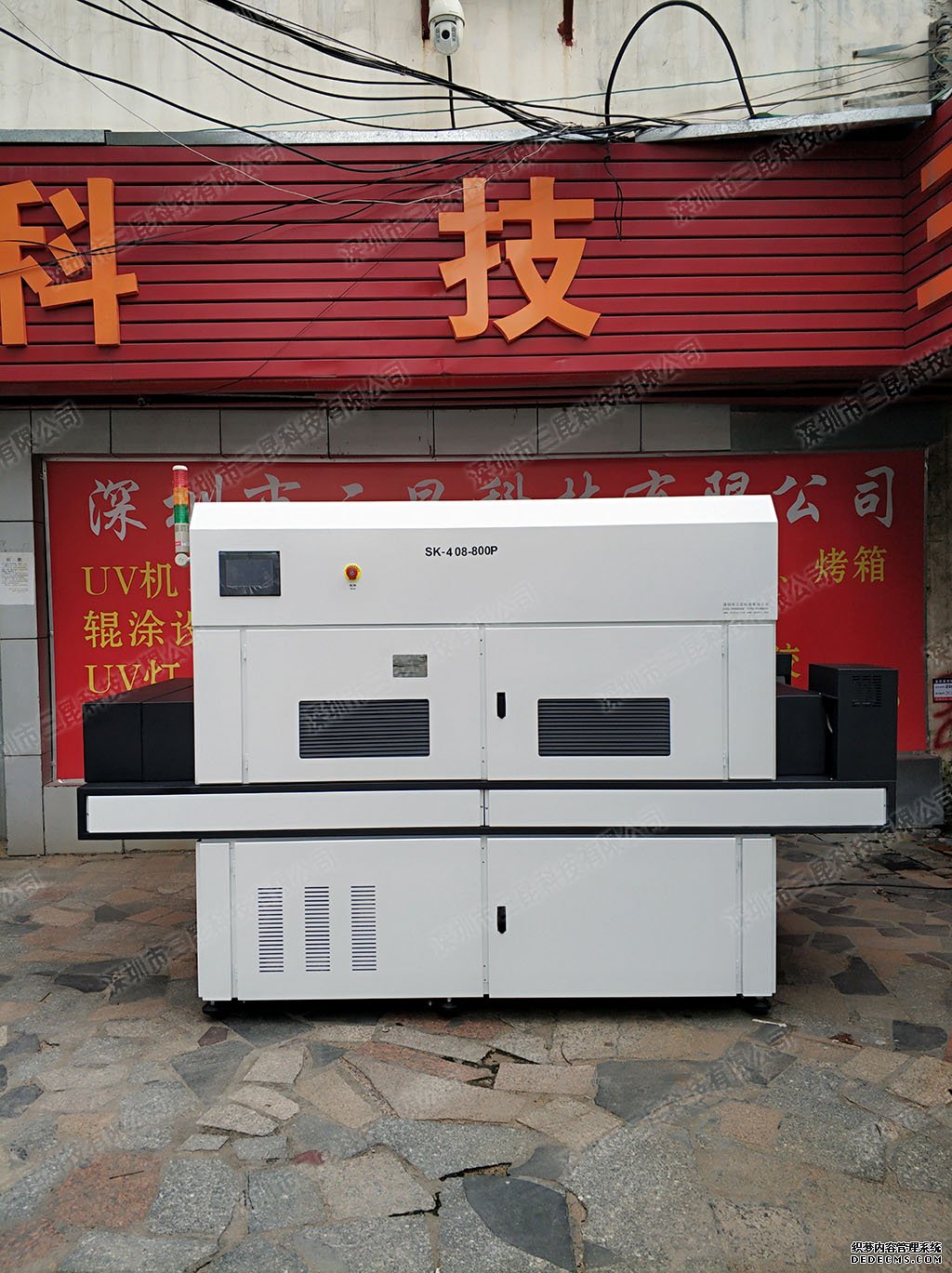

【线路板油墨uv固化机】用于PCB行业的油墨固化和绿油固化SK-408-800P

品牌：SunKun(三昆)

型号：SK-408-800P

订购：不限数量

价格：面议

⒈订购热线：13823369867(李先生)
1753480168
⒉业务咨询：13913507139(黄永贵)
2851085006



⒈市场部：13510246266(黄总经理)
289604232

1、UV灯功率:8.0kw*4支(UV卤素灯)
2、UV灯总长:900mm、弧长:800mm
3、UV波段主波峰:365nm、380nm
4、人机界面触摸屏控制
5、强弱光强调节:20%~100%(无级调光)
6、钣金灯箱安装进口插片反射器
7、采用上排风系统
8、输送材料:不锈钢网带间距穿不锈钢轴
9、输送宽度:800mm
10、输送速度:1~10m/min(变频器调速)
11、入口高度:50mm
12、输送方向:操作面从右到左
13、电源:380VAC 50HZ

1, UV lamp power: 8.0kw * 4 (UV halogen lamp)
2, the total length of the UV lamp: 900mm, arc length: 800mm
3, UV band main peak: 365nm, 380nm
4, man-machine interface touch screen control
5, strong and weak light intensity adjustment: 20% ~ 100% (stepless dimming)
6, sheet metal light box installation of imported insert reflector
7, using the upper exhaust system
8, conveying materials: stainless steel mesh belt spacing wear stainless steel shaft
9, conveying width: 800mm
10, conveying speed: 1~10m/min (frequency converter speed regulation)
11, the entrance height: 50mm
12, conveying direction: operating surface from right to left
13, power: 380VAC 50HZ

紫外线固化技术（简称UV技术），被认为是一种环境友好的绿色技术，亦称3E技术，即节能（energy）、环保（environment）、经济（economy），

主要应用于涂料、油墨、胶粘剂等领域。其中紫外线固化UV胶广泛应用于玻璃制品与珠宝业、玻璃家俱、医疗器具、电子、电器、光电子、光学仪器、制造等领域，如电子线路板、电子元器件、数码相机、电子称制造、蜂鸣片等产品的制造。想了解更多相关信息，可以咨询深圳市三昆科技有限公司，谢谢！

UV curing technology (referred to as UV technology) is considered to be an environmentally friendly green technology, also known as 3E technology, namely energy, environment, economy, mainly used in coatings, inks, adhesives, etc. field. Among them, UV-curable UV
adhesives are widely used in glass products and jewelry, glass furniture, medical appliances, electronics, electrical appliances,
optoelectronics, optical instruments, manufacturing, etc., such as electronic circuit boards, electronic components, digital cameras, electronic scale manufacturing, bees. The manufacture of products such as film. For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!
